How to measure 4 20ma with multimeter

You simply connect the resistor across the voltage input terminals for your data acquisition system, and then connect your 4-20ma signal to the same two terminals, so that as the current flows through the resistor, a voltage will be dropped and then measured by the data acquisition device.

How do you measure milliamps with a multimeter?

The current flows through the multimeter, which displays the current. Ensure that the current is in the range of mA expected and then lower the setting of your multimeter to the next-highest option – for a 0.05 A or 50 mA current, choose 200 mA – to get a precise reading in milliamps.

How do you read a 4-20mA sensor?

so when you connect the 4-20mA current receiver circuit in the series and read the sensor it will read 4ma when the pressure is 0 psi and it will read 20mA when the pressure is 50 psi. This conversion will be a linear conversion, so you will be able to calculate the real pressure value at any given point.

Is a 4 20mA signal AC or DC?

The 4-20 mA current loop has been the standard for signal transmission and electronic control in control systems since the 1950's. In a current loop, the current signal is drawn from a dc power supply, flows through the transmitter, into the controller and then back to the power supply in a series circuit.

How do I check mA signal?

Step 1: Access the wire connected to the '+' terminal of the transmitter (no need to remove the wire). Step 2: Put the process clamp meter in 'Measure' mode. Step 3: Clamp the wire connected to the positive terminal of the transmitter and measure the mA signal as shown below.

How is mA measured in analog multimeter?

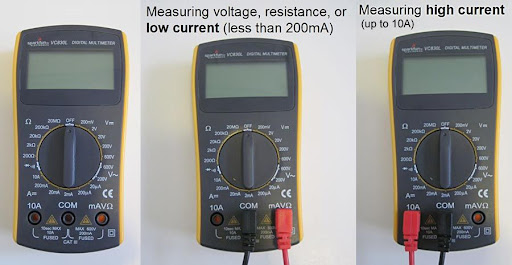

Insert red and black probes to the multimeter in their respective slots, depending on very high or very low current measurements. Some meters 'mA' symbol slot indicates low current measurements and 'A' symbol slot indicates high current measurements.

How many ohms is a mA?

If your control circuit is using a 500Ω resistor:
mA	Amps x Resistance	Volts
8	0.008 x 500Ω	4
9	0.009 x 500Ω	4.5
10	0.010 x 500Ω	5

Which instrument is used to measure mA?

Picoammeter. A picoammeter, or pico ammeter, measures very low electric current, usually from the picoampere range at the lower end to the milliampere range at the upper end.

How do you calculate 4-20mA?

We find the percentage of process variable is equal to current value divided by span times 100. So

How do you troubleshoot a 4-20mA sensor?

Measure the loop power supply voltage, and ensure that it is at the proper level. 1) If the supply output is zero, determine if the supply is being powered, if a fuse is blown, or if the supply is damaged. 2) If the supply voltage is a little low, check to see if the supply is unregulated.

Why it is 4/20 mA and not 0 20 mA?

The 4-20 mA signal is preferred over 0-20 mA signal because the broken wire can be easily detected with use of 4-20 mA signal. If current observed is zero in a 4-20 mA transmitter, the transmitter will output an error signal. The current signal can be transmitted without error to a distance of 1000 meters.

How far can you run a 4-20mA signal?

20G conductors at about 12 ohms per 1000 feet (about 330m) means that 450 ohms of 20G conductor could be support 4-20mA as far as about 18,750 feet, about 3.5 miles or about 6km.

Which is better 4 to 20 mA or 0 to 10v?

The bottom span 4 mA expresses a minimum signal value than a broken wire. Since the loop current never falls to zero, it can be loop powered, allowing for a two-wire circuit. 20 mA is considered an intrinsically safe signal in most locations.

Can a 4-20mA signal be split?

A 4-20mA signal can be looped through multiple devices. As long as the loop is complete each device (PLC) will read the mA signal. You just have to cut one wire of the existing loop and loop it through the other PLC. "Multiple" is limited by the power supply.

How do you simulate a 4-20 mA signal?

To simulate the 4.. 20mA signal we must connect the linear potentiometer in series with the resistance, and adjust the PLC analog module for 2Wire. To make sure the loop is functioning I will suggest connecting a multimeter in series between R2 and the “-” side of the PLC channel.

Is 4-20 mA analog or digital?

Despite the growing focus on digital communication technologies, the 4-20 mA analog output remains one of the most dominant types of analog output in the industry today.

What multimeter can measure?

A digital multimeter is a test tool used to measure two or more electrical values—principally voltage (volts), current (amps) and resistance (ohms). It is a standard diagnostic tool for technicians in the electrical/electronic industries.

What is mA in multimeter?

When you see the term “milliamp” or “mA” this means 1/1000 of an ampere. For example: 4 mA = 4/1000 amps = 0.004 amps.

How do you use a multimeter to measure current?

Break the circuit at any point and connect the two probes to the two open points on the circuit. Press the trigger key and hold the probes to your circuit for two seconds. Then disconnect your probes and reconnect your circuit. Your digital multimeter should show the circuit's current on the digital display.
